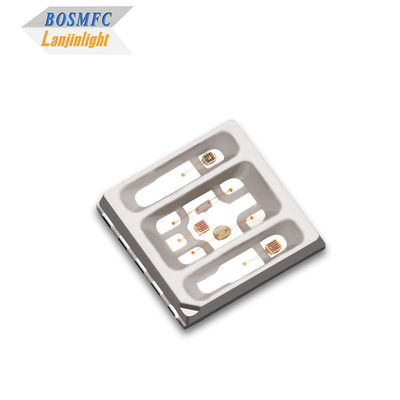

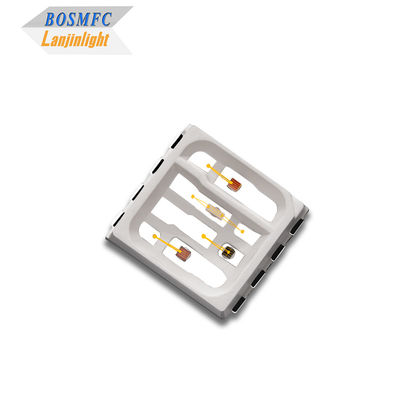

RGBYIR & 1064nm 5050 SMD multi-Color LED for Phototherapy Facial Mask
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | BOSMFC |
| Certificación: | Rohs, Reach |
| Número de modelo: | 5050 SMD LED IR |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1000pcs |
|---|---|
| Detalles de empaquetado: | 1000pcs por bobina, carrete + bolsa antistatico + cartón |
| Tiempo de entrega: | 5-15 días |
| Condiciones de pago: | T/T, Western Union, PayPal |
| Capacidad de la fuente: | 500KK/mes |
|
Información detallada |
|||
| Fuerza: | 1 W | Color emisor: | luz llevada infrarroja |
|---|---|---|---|
| Longitud de onda: | 410/460/630/590/660/830/850/940NM | Corriente de reenvío: | 60mA |
| Voltaje hacia adelante: | 1.8-2.4v/1.3-1.7v | Ángulo de visión: | 120 ° |
| Tamaño: | 5.4*5.0*1.0 mm | Esperanza de vida: | 50,000 horas |
| Garantía: | 3 años | marca: | Chip de San'an / Chip Epistar |
| Paquete: | 1000pcs/carrete | ||
Descripción de producto
RGBYIR & 1064nm 5050 SMD multi-Color LED for Phototherapy Facial Mask
This advanced phototherapy mask features 5050 SMD LEDs with a unique RGBYIR & 1064nm multi-wavelength system. It delivers comprehensive skin treatment: red for anti-aging, blue for acne, green/yellow for soothing, and IR/1064nm for deep tissue repair. An all-in-one solution for professional rejuvenation and healing at home
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 630nm
850nm 410nm 590nm |
--- |
10 30 2.5 9 |
--- | LM
mW LM LM |
IF=60mA |
| Dominant wavelength | 630nm
850nm 410nm 590nm |
620
840 400 585 |
--- | 635
860 420 595 |
nm | IF=60mA | |
| Forward voltage | VF | 630nm
850nm 410nm 590nm |
1.8
1.3 3.0 1.8 |
--- | 2.4
1.7 3.4 2.4 |
V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=60mA |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 830nm
625nm 590nm 410nm 1050 |
--- |
25 10 9 2.5 10 |
--- | mW
LM LM LM mW |
IF=60mA |
| Dominant wavelength | 830nm
625nm 590nm 410nm 1050 |
825
620 590 410 1040 |
--- | 830
625 595 415 1090 |
nm | IF=60mA | |
| Forward voltage | VF | 830nm
625nm 590nm 410nm 1050 |
1.3
1.8 2.0 3.0 1.4 |
--- | 1.7
2.4 2.4 3.4 1.6 |
V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*1.1mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Customized Multi-color combined: 630+660+850nm ;
625+520+460+590nm;
625+850+460+590nm;
830+625+590+415+1050nm
Applications:
1. Beauty therapy lamp.
2.Wound healing lamp
3. Oxygen injector
4. Hair remover
3. Other medical device, like Oximeter
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: What chip you usually use for your led?
A4: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q5: What payment terms are available?
A5: T/T,PayPal, Western Union and Secure Payment.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
